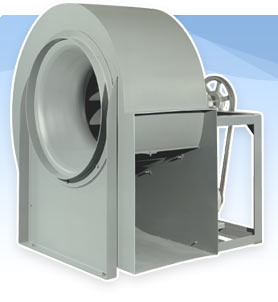

BACKWARDLY INCLINED FANS

Backward inclined fan blower

Backward Inclined and Airfoil Centrifugal Fans & Exhausters.

Type: Airofoil, Backward Curved and Backward Inclined fan blades.
  • High efficiency up to 85%
  • Minimum maintenance
  • Easy installation
  • Dynamically balanced impellers
  • Software to design bigger fans than the standard available.
Application : Ventilation, Dust Collecting, Air Conditioning, Petrochemical and Coal Industries, Gas Fired Boilers, ID Fans, Industrial Burners, Pneumatic Conveying, etc.

Range : Capacity- up to 200,000 CFM, Pressure-up to 20" WG in Single stage

DYNAMIC BALANCING- We offer our services for dynamic balancing of fans and blowers.

HIGH PRESSURE BACKWARD CURVED FANS

High pressure backward curved fans

High pressure Centrifugal Fans and Blowers of high efficient backwardly curved fan type.

Features :
  • High efficiency upto 88%
  • Minimum Maintenance
  • Adjustable Discharge Position
  • Easy installation
  • Dynamically balanced blower impellers
Application : Ventilation, Dust Collection, Air Conditioning, Oil and Gas Industry, Biomass Combustion, Flue Gas Extraction, etc.

Range : Capacity-up to 150,000 CFM, Pressure-up to 60" WG.

Note : High Pressure Backward Curved Fans are available in Double Width Double Inlet Type (DWDI).

RADIAL BLOWERS

Radial fans blowers

Centrifugal Blowers and Fans with Radial Impellers.

Features :

  • High efficiency upto 75%
  • Minimum Maintenance
  • Paddle Material Handling Wheels
  • Dynamic balanced impeller
Application : Dust collection, ID Fans, Pneumatic Conveying, Combustion, etc.

Range : Capacity- up to 100,000 CFM. Pressures - up to 100" WG.

These are available in two types:

1) Long Shaving Wheel
2) Wool Wheel

Applications : Conveying of long fibers, wool, cotton, rayon, trimming of metals, etc.


MULTISTAGE CENTRIFUGAL BLOWERS
Multistage blowers
Multistage Centrifugal Blower consists of a number of special alloy impellers mounted on the common shaft in iron or fabricated housing.

Features :
  • Delivery of oil free air / gas
  • Surge proof type and therefore no overloading
  • No internal lubrication
  • High efficiency
  • Easy installation
  • Dynamically Balanced blower impellers
  • Rugged Body
Applications : Pneumatic Conveying, Bio-gas boosting, Glass Blowing, Agitation of liquids, Sewage disposal, Ore flotation, Air Scouring of Pressure filters, etc.

Range : Capacity - up to 30,000 CFM. Pressure-up o 20 psig.

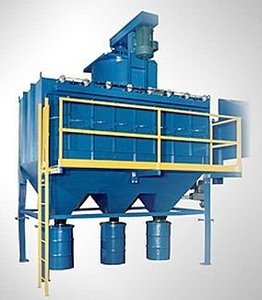

DUST COLLECTORS & AIR SCRUBBERS

Dust collectors

The wet precipitator cleans the air by the combined action of centrifugal force and through inter-mixing of water and dust-laden air.

Features:
  • Compensating water level control
  • No contamination or clogging
  • High collection efficiency
  • Low Maintenance requirements
  • Sturdy construction for longer life.
  • Choice of Disposal methods
Application : Heavy Dust Generating Processes like Foundries, Chemical plants, Power plants, Sand Blasting Machines, Fluidised Bed Boilers Acid Fume Extraction etc.

Range : Up to 50,000 CFM AIR WASHER- Air Washing Chamber is used for cleaning, humidification and cooling of large volume of intake air.



1   2 Next


Centrifugal Fans and Blowers | Centrifugal Fans & Exhausters | High Efficient Centrifugal Fans | Dust Collection and Air Handling Systems | Centrifugal Fans | Centrifugal Blowers | Multistage Centrifugal Blowers Manufacturer | Agricultural Fans | Industrial Engineered Ventilators | Ventilating Fan Company


Stock of tubeaxial & vaneaxial inline duct fans, blower and fan repair / balancing, replacement centrifugal and axial fan blades, axial duct fans, aluminum pressure blowers, FRP ventilators, dust collectors blowers fans, dust collection fan ventilators, high temperature oven circulation fans, explosion proof ventilatoprs, spark reistant fans and blowers, induce & force draft fans, fan blower impellers.
Industrial fans are classified into propeller, tube axial and vane axial styles, and each type has different characteristics. Propeller fans consist of only a motor
and propeller and therefore are the simplest. Tube axial are similar to propellers but has a venturi around the propeller to reduce the vortices.
Vane axial fans are equipped with vanes that trail behind the propeller in the airflow to straighten the swirling flow.  ACME Fan Co. FRP fan are the finest quality blowers available for efficient movement of corrosive, humid, or polluted air, gases, and fumes. These fire-retardant and corrosion-resistant plastic fans are specially designed and especially suited for hostile applications where coated metal blowers typically corrode. ACME Fans are proven thoughout the world and clearly recognized for superior quality, reliability, and efficiency.
Marine systems require rugged-duty fans for the proper ventilation of spaces below a ship's decks. Combustion blowers for the ship's boilers also require a source of fresh air. Passenger vessels and offshore platforms require higher rates of ventilation for personnel and safety reasons. Direct-drive axial fans are usually favored in these applications due to space-saving features. Special marine-duty electrical connections and IEEE45 motors are required. Military requirements add additional features to these special fans.
